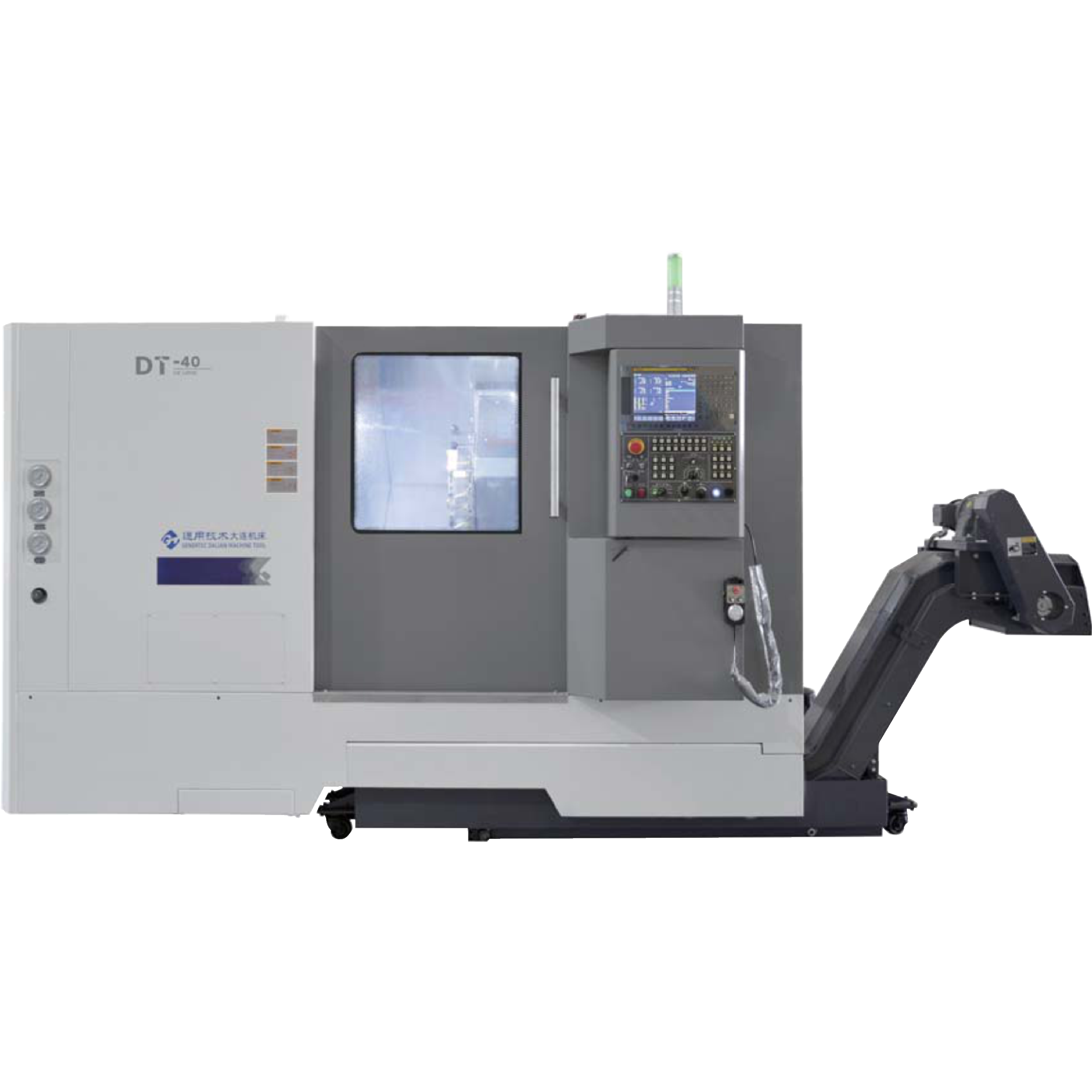

DMTG CLS Series – Slant Bed CNC Lathe
High Precision, Optimal Stability, and Reliable Performance for Modern Production
The DMTG CLS Series is a slant bed CNC lathe designed to meet machining demands that require high accuracy and maximum production efficiency.
This series combines a rigid bed structure, advanced CNC control systems, and linear guideways to ensure smooth, precise movement throughout every cutting process.
Key Features:
-

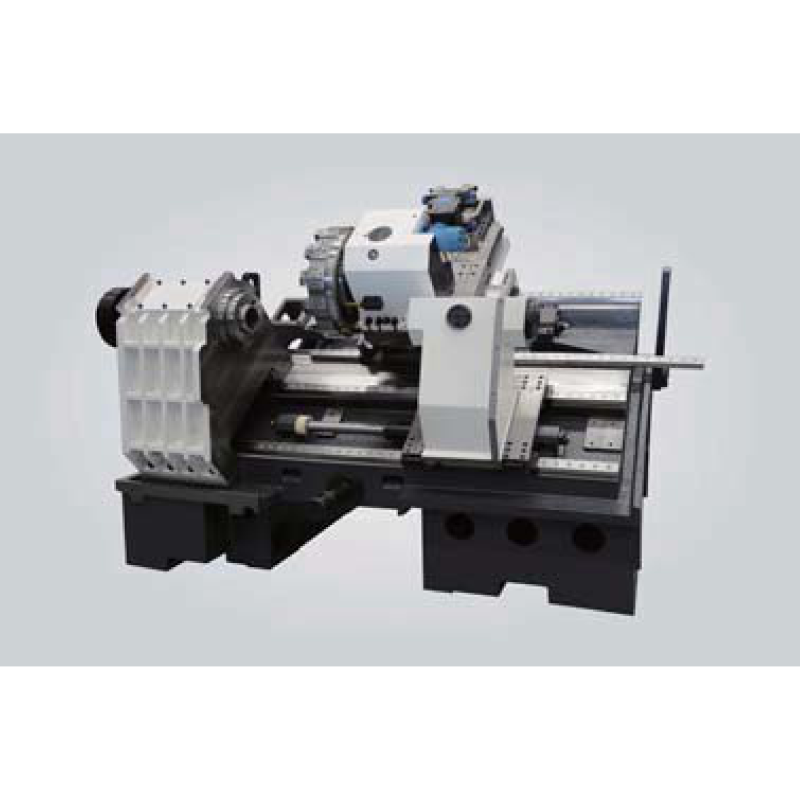

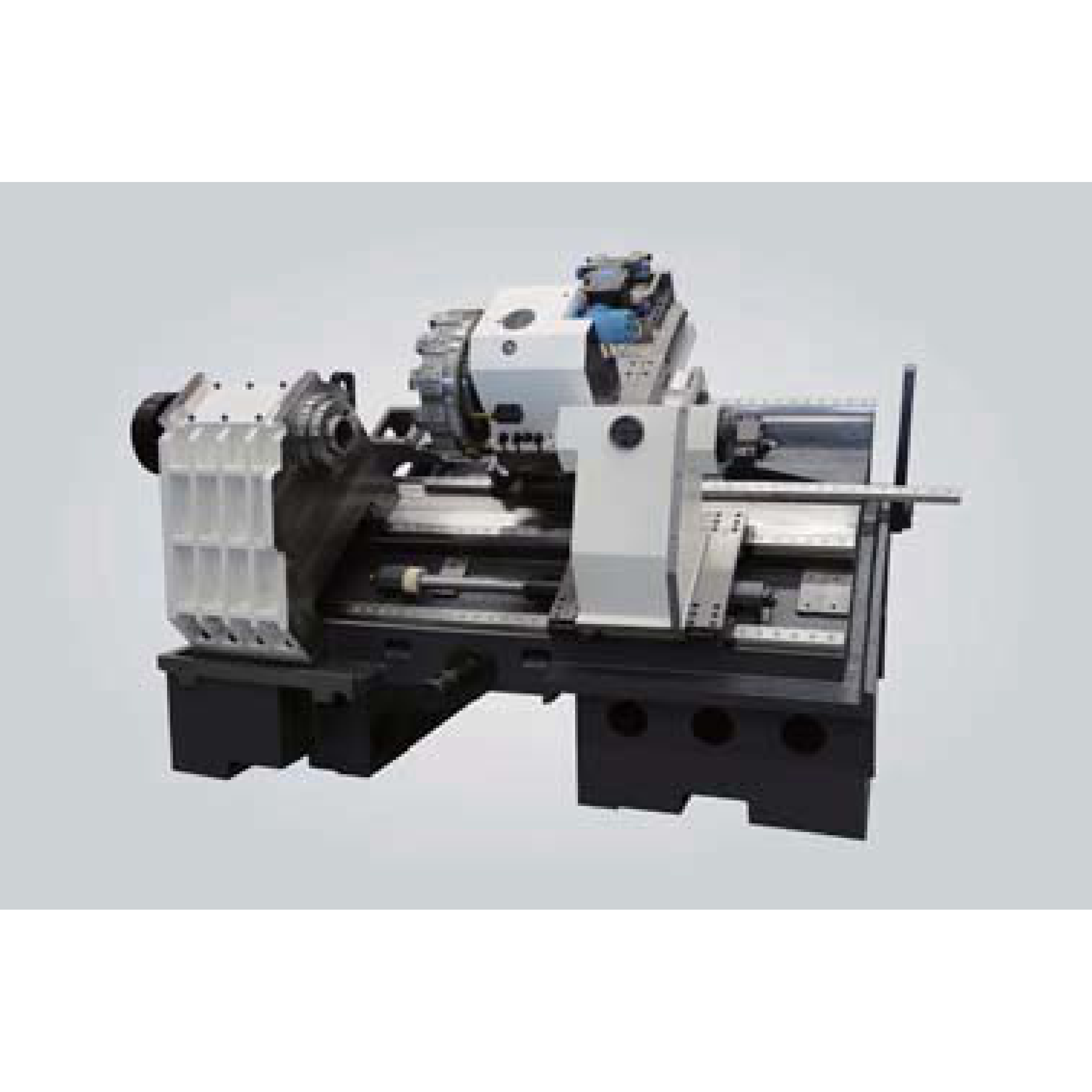

Rigid Slant Bed Construction
The rigid slant bed design with linear guideways ensures exceptional stability and accuracy, even during high-speed cutting operations. -
High-Power Spindle
Equipped with a spindle motor of up to 18.5 kW, providing strong torque for heavy-duty and consistent turning performance. -

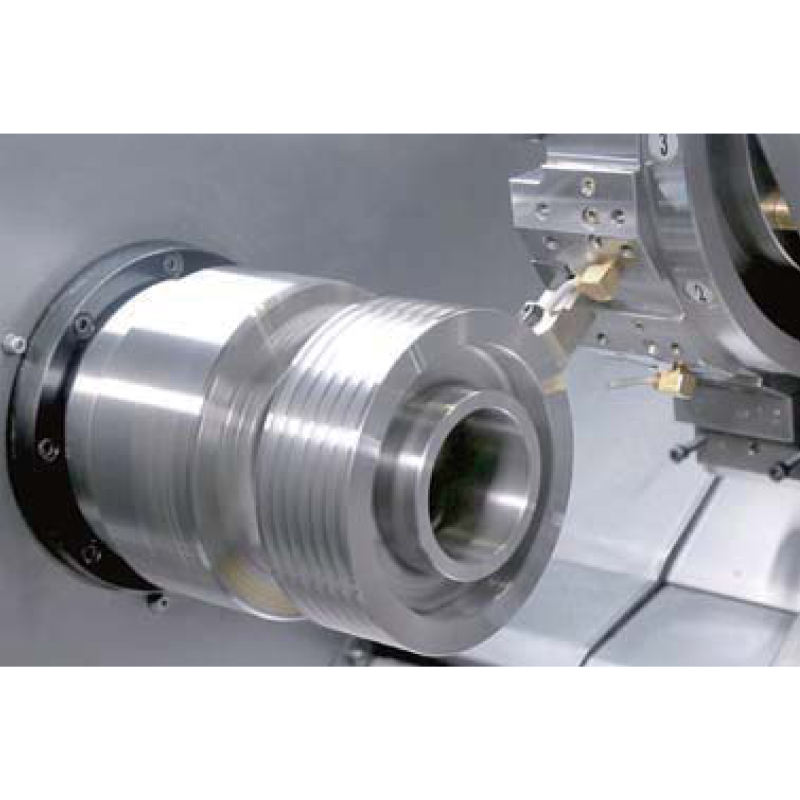

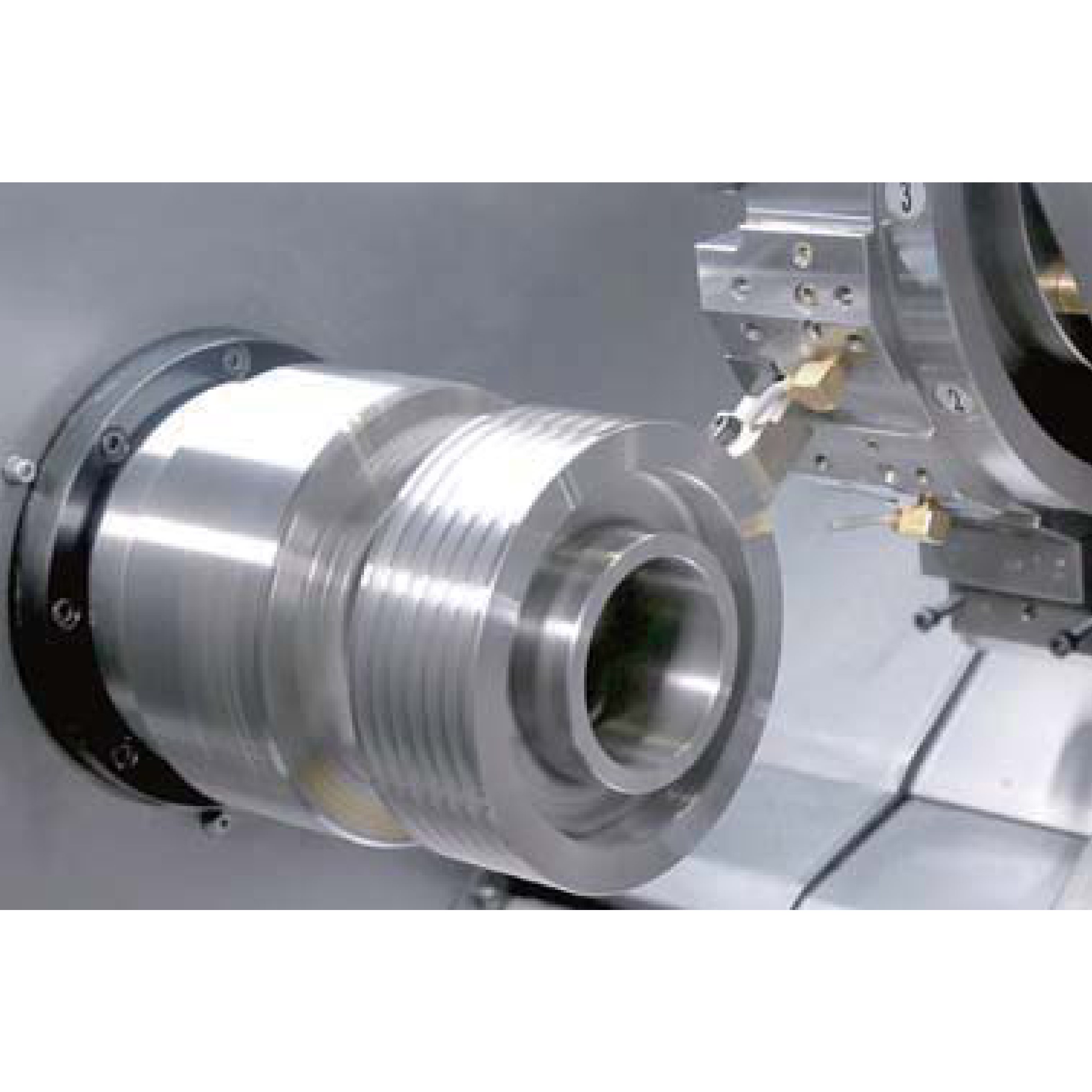

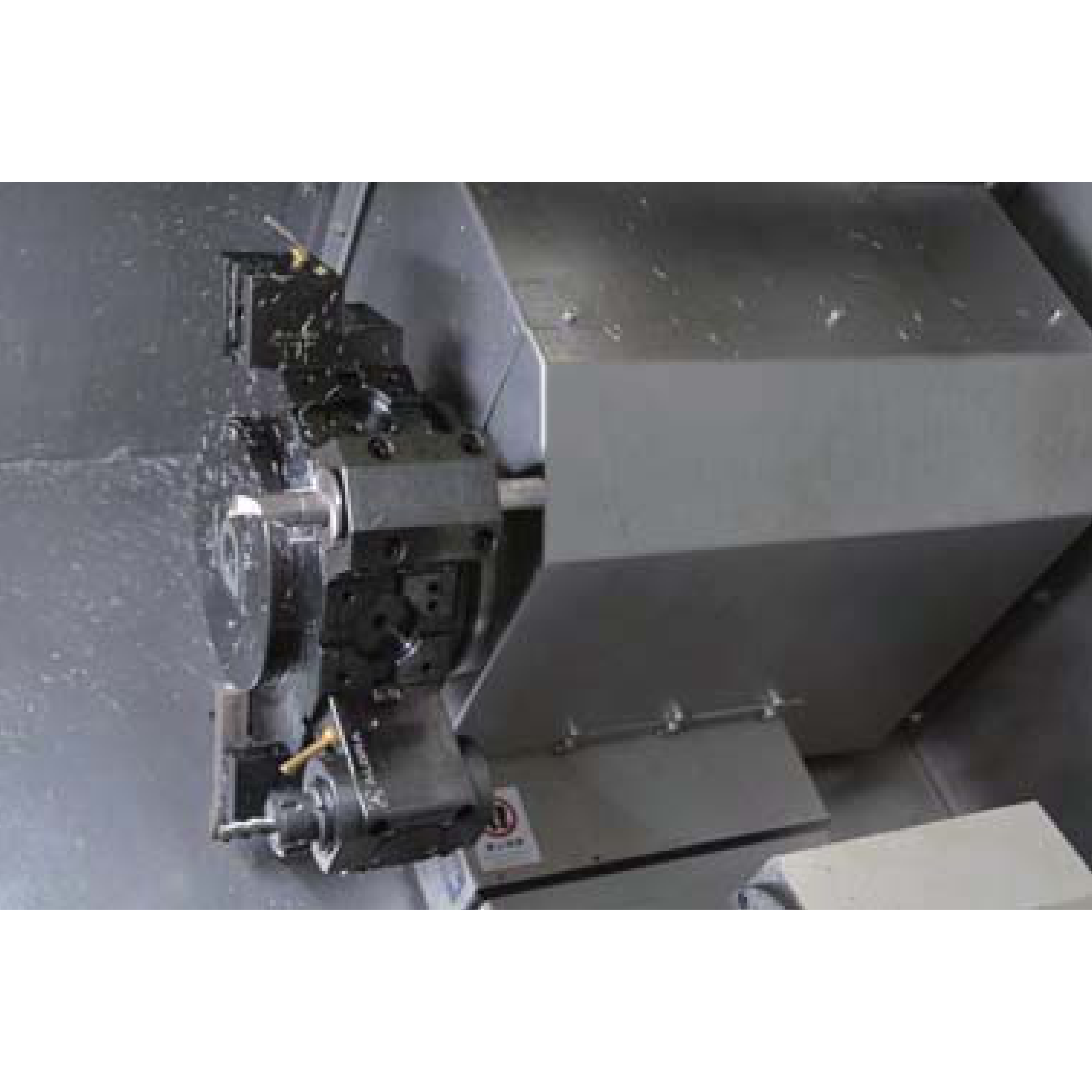

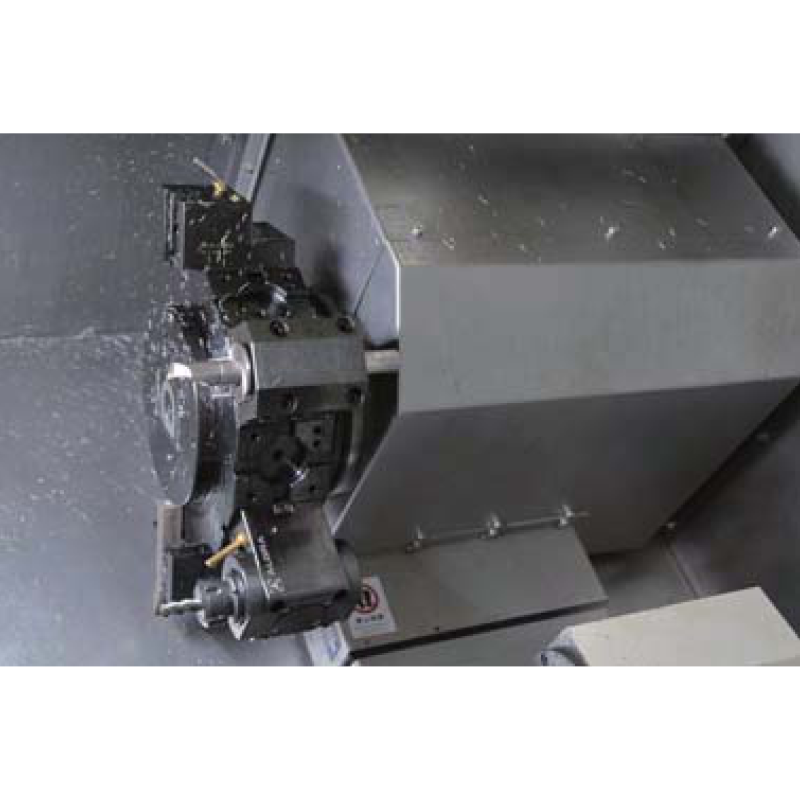

Precision Tool Turret System
Featuring a servo 12-position turret or live tooling turret, allowing fast and efficient tool changes for complex machining applications. -
Advanced CNC Control
Powered by the FANUC Oi-TF Plus system, with optional Siemens SINUMERIK 828D, delivering user-friendly programming and seamless integration with digital manufacturing systems. -
High Accuracy and Repeatability
With positional accuracy up to ±0.005 mm and repeatability up to ±0.003 mm, the CLS Series is ideal for precision machining requirements. -
Flexible and Configurable Design
Available in multiple spindle, chuck, and cutting length configurations (up to 1080 mm), with optional accessories such as bar feeder, chip conveyor, and hydraulic steady rest.
| Specification | Unit | DT-40 | DT-40H | DT-40HY | DT-40Plus | DT-50 | DT-50H |
|---|---|---|---|---|---|---|---|
| Max. swing diameter over bed | mm | Φ580 | Φ580 | Φ580 | Φ580 | Φ680 | Φ680 |
| Max. turning diameter (Shaft/Disc) | mm | Φ360 / Φ400 | Φ350 / Φ350 | Φ350 / Φ380 | Φ360 / Φ400 | Φ450 / Φ450 | Φ450 / Φ450 |
| Max. turning length | mm | 580 / 1080 | 850 / 1080 | 850 / 1080 | 580 / 1080 | 850 / 1080 | 850 / 1080 |
| Guideway type | – | Linear guideway | Linear guideway | Linear guideway | Linear guideway | Linear guideway | Linear guideway |
Spindle
| Type of spindle nose | – | A-6 (Opt. A-8) | A-6 (Opt. A-8) | A-6 (Opt. A-8) | A-6 (Opt. A-8) | A-8 | A-8 |
| Chuck size | inch | 8 (Opt. 10) | 8 (Opt. 10) | 8 (Opt. 10) | 8 (Opt. 10) | 10 | 10 |
| Spindle speed range | rpm | 4000 | 4000 | 3500 | 4000 | 3500 | 3500 |
| Spindle bore | mm | Φ70 | Φ70 | Φ70 | Φ70 | Φ87 | Φ87 |
| Max. bar capacity | mm | Φ51 | Φ51 | Φ51 | Φ51 | Φ73 | Φ73 |
| Spindle motor power | kW | 11 / 15 | 11 / 15 | 11 / 15 | 11 / 15 | 15 / 18.5 | 15 / 18.5 |
Travel
| Max. travel of X-axis | mm | 215 (235 – CHINA ver.) | 215 | 225 | 215 | 265 | 265 |
| Max. travel of Z-axis | mm | 600 / 1100 | 750 / 1050 (ITAY) 585 / 885 (CHINA) |
750 / 1050 (ITAY) 585 / 885 (CHINA) |
600 / 1100 | 600 / 1100 | 600 / 1100 |
| Rapid traverse of X/Z axes | m/min | 30 / 30 | 30 / 30 | 30 / 30 | 30 / 30 | 30 / 30 | 30 / 30 |
