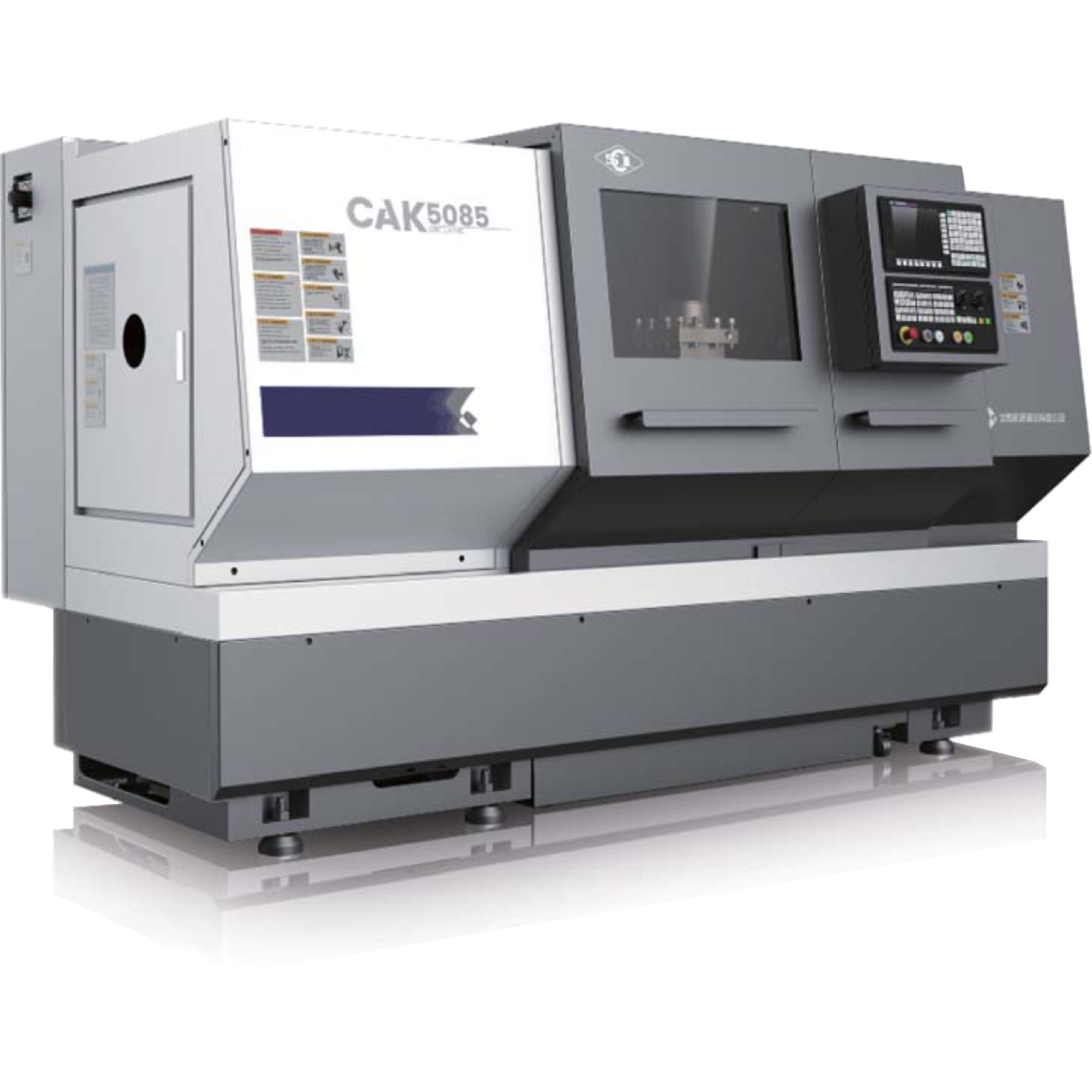

The DMTG CAK Series is a flat bed CNC lathe designed to deliver high accuracy, optimal stability, and ease of programming.
Equipped with an advanced CNC control system and a robust bed construction, this series is ideal for high-precision machining on both light and heavy metal materials.
Key Features:
-
-
Rigid and Stable Flat Bed Design
Ensures precise positioning and excellent vibration resistance, resulting in smoother and more accurate cutting performance. -

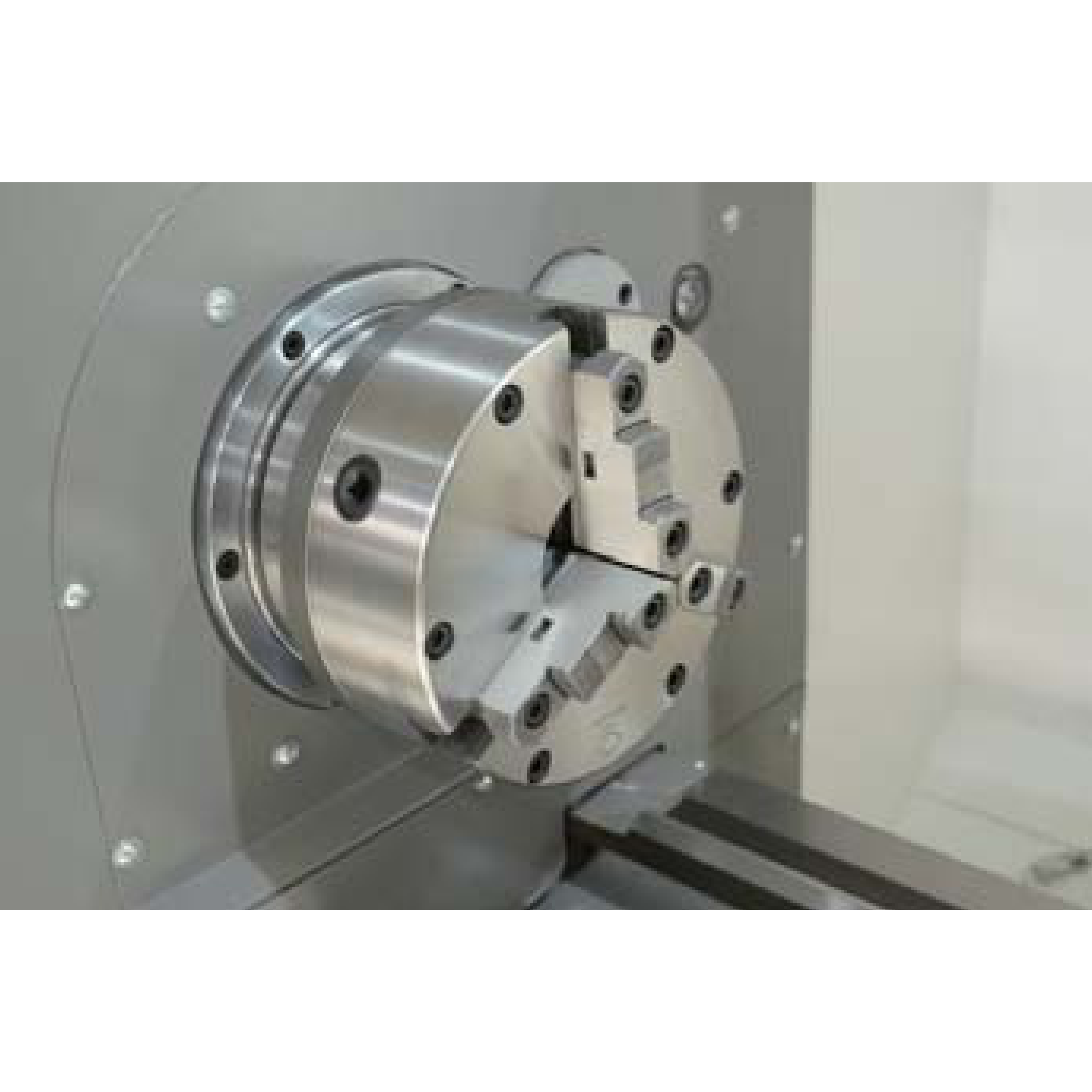

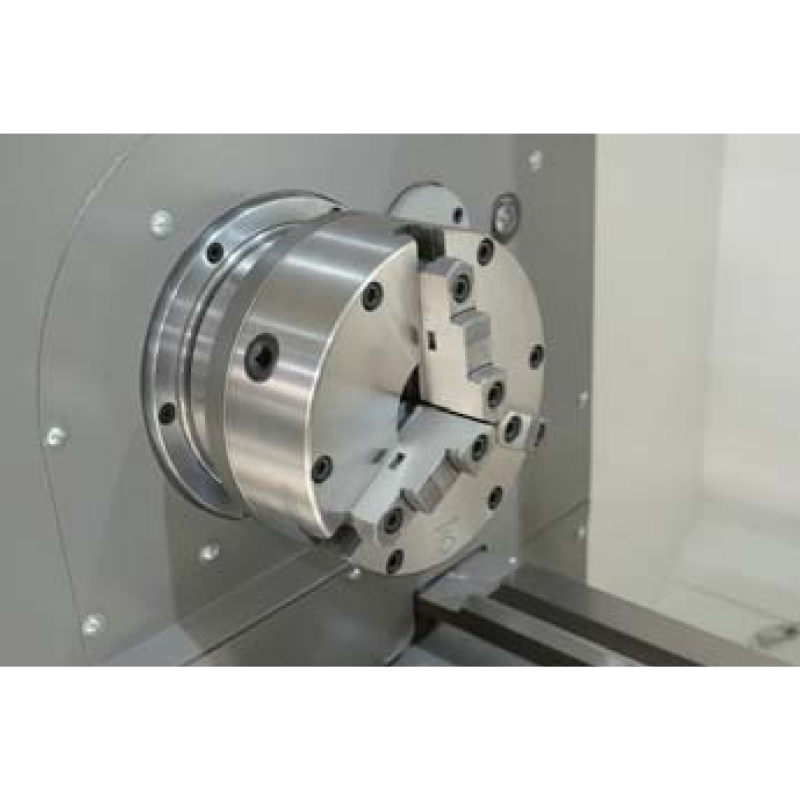

High-Precision Spindle System
Equipped with an Electric 3-step speed transmission and a large spindle bore to accommodate a wide range of workpiece sizes. -

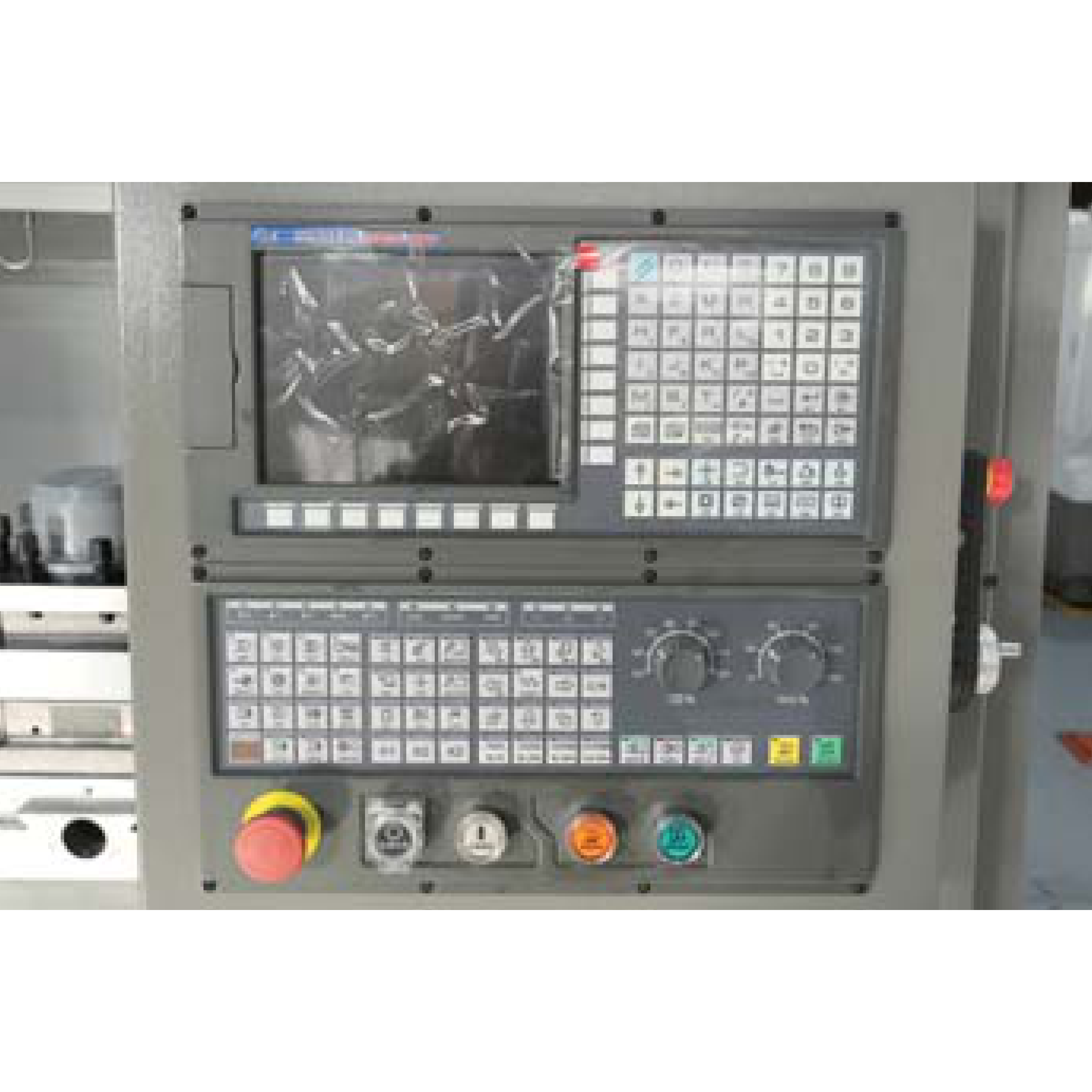

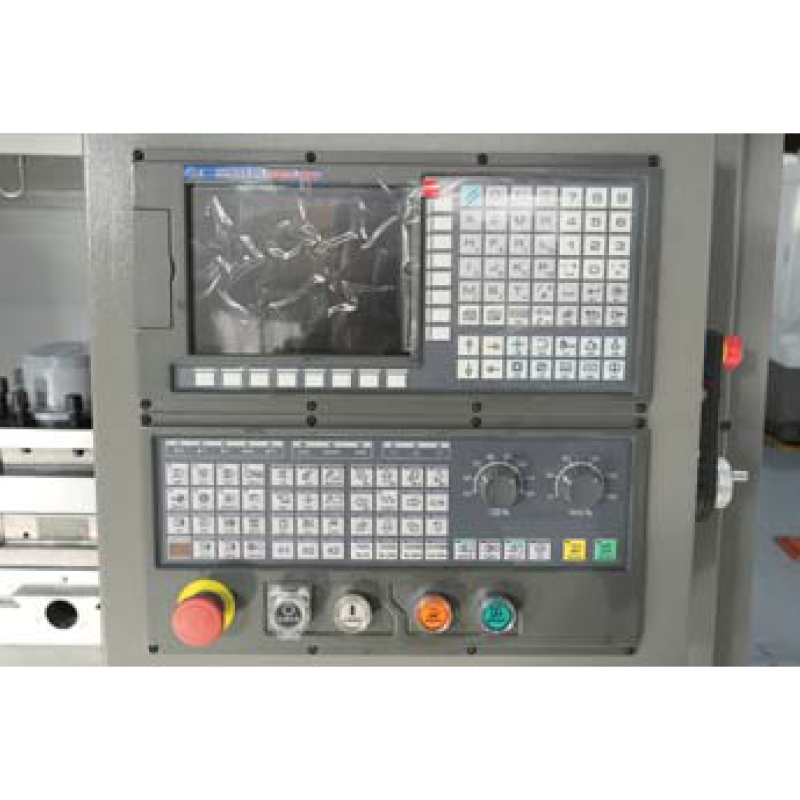

Modern CNC Control
Powered by the GSK980TDc system, which is intuitive and easy to operate—supporting both efficiency and precision in every operation. -
Powerful and Responsive Motor
With a main motor power of 7.5 / 11 kW, the machine delivers stable and consistent performance even during continuous cutting operations. -
Wide Machining Capacity
Generous X/Z axis travel provides flexibility for various machining applications, from small parts to large workpieces.
-
| Spesifikasi | Satuan | CAK5085 |
|---|---|---|
| Max. Swing Diameter Over Bed | mm | Ø500 |
| Max. Cutting Length | mm | 850 |
| Max. Cutting Diameter | mm | Ø500 |
| Max. Swing Diameter Over Slide | mm | Ø300 |
| Center Height (To the Bed / To the Ground) | mm | 250 / 1130 |
| Spindle | ||
| Spindle Nose | A2-8 | |
| Spindle Bore | mm | Ø82 |
| Speed Range | r/min | 30–1500 (Electric 3-step, stepless) |
| Main Motor Power | kW | 7.5 / 11 |
| Chuck Diameter | mm | Ø250 |

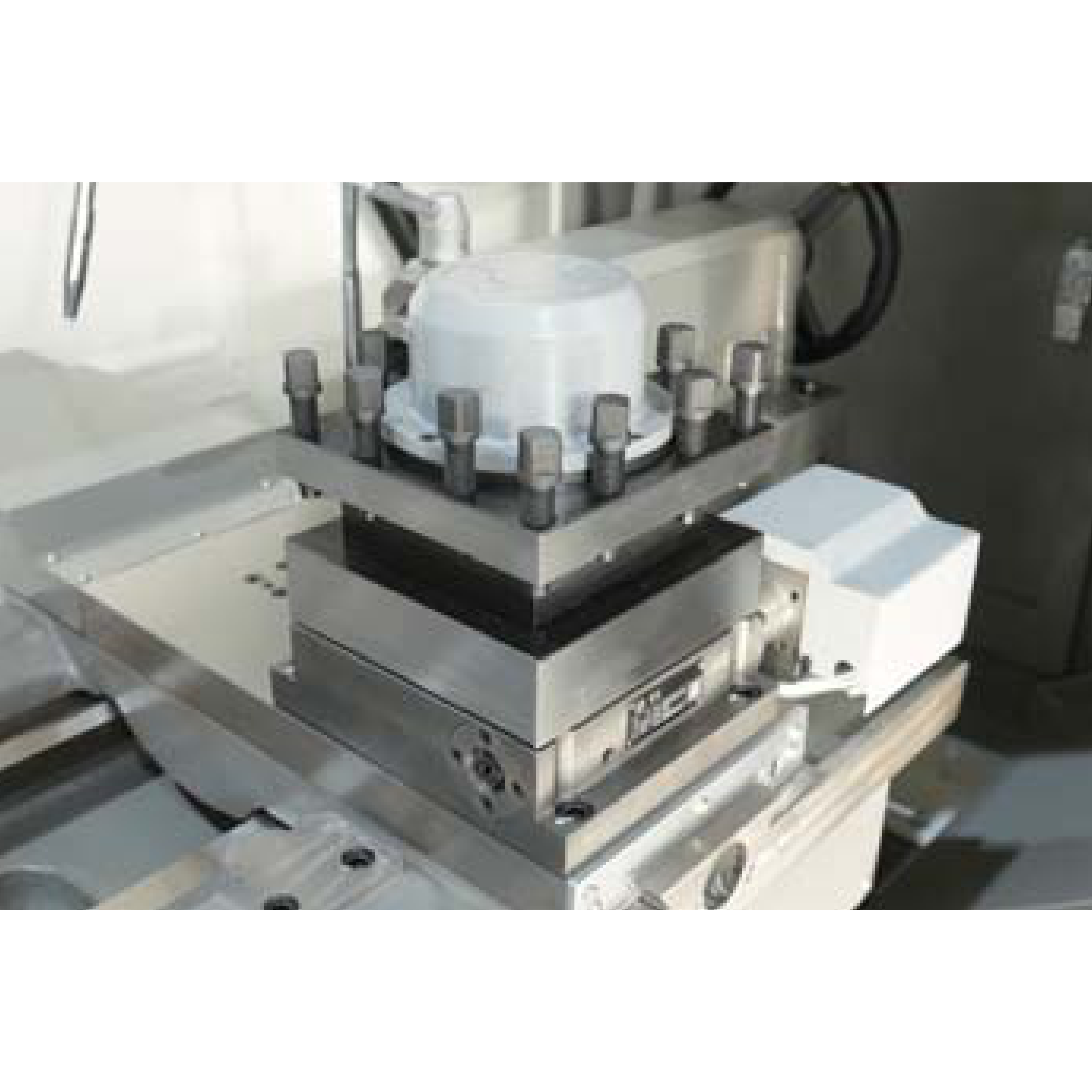

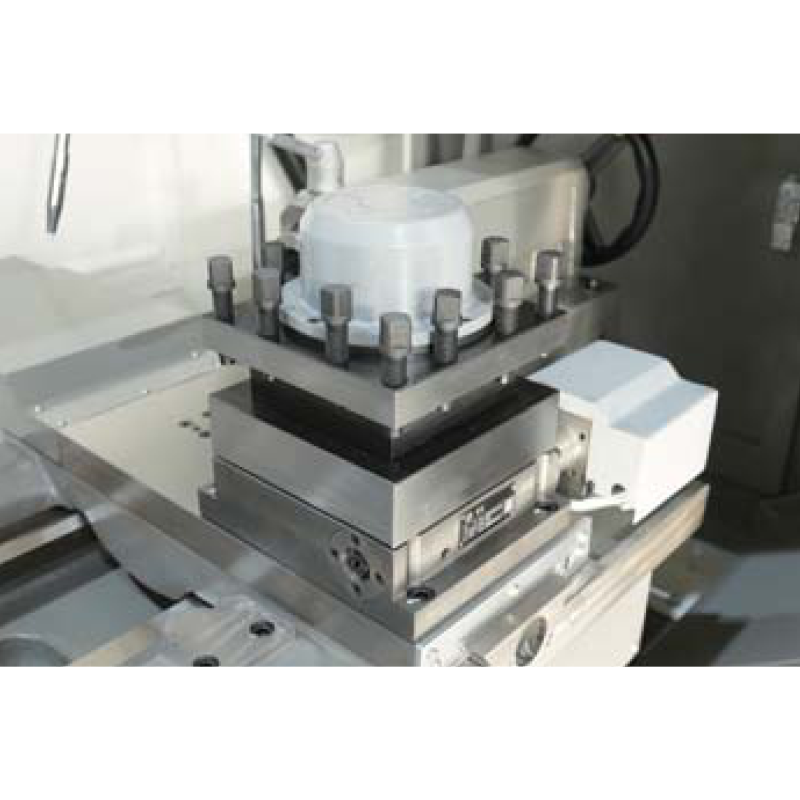

| Turret | ||
| Type | 4-station electric | |
| Rapid Traverse X/Z Axis | m/min | 6 / 8 |
| Travel X/Z Axis | mm | 270 / 850 |
| Tailstock | ||
| Quill Diameter | mm | Ø75 |
| Quill Travel | mm | 150 |
| Taper of Tailstock Sleeve | MT5 | |
| General | ||
| Electrical Capacity | kVA | 15 |
| CNC Controller | GSK980TDc | |
| Machine Weight | kg | 2800 |
| Overall Dimension (L×W×H) | mm | 2770 × 1130 × 1735 |
