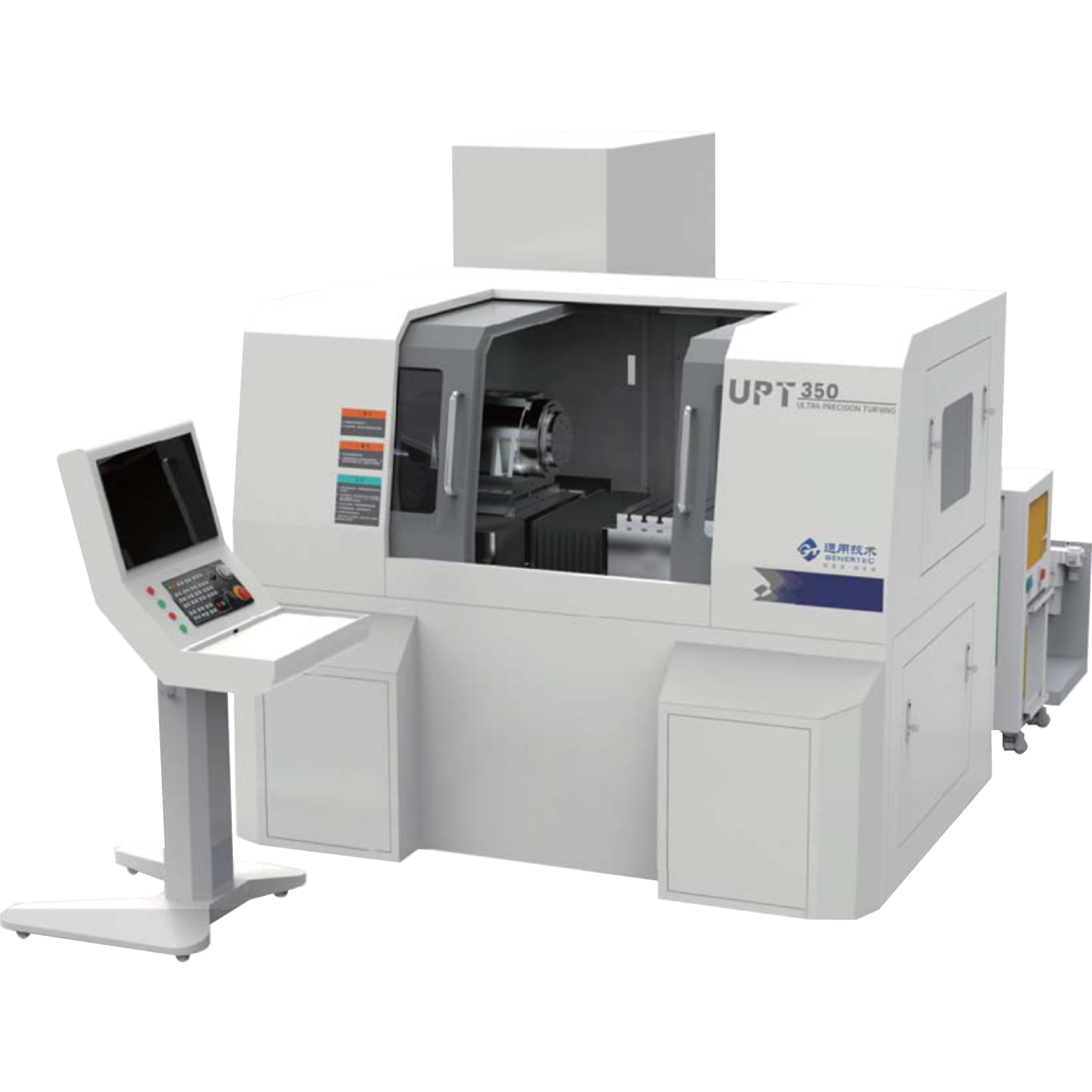

High Precision for Micro Machining and Optical Processing

The UPT350 is engineered to meet the demands of ultra-high precision machining, particularly for industries requiring micron-level accuracy such as optics, precision electronics, and high-accuracy component manufacturing.
With stable axis control and a high-resolution feedback system, the UPT350 delivers exceptional performance in maintaining dimensional consistency and surface quality during cutting operations.

Key Features:

• High Precision on All Axes
  Equipped with C-axis positioning accuracy of up to 2 arc-sec and repeat positioning accuracy of 1.5 arc-sec, ensuring maximum stability and rotational accuracy.

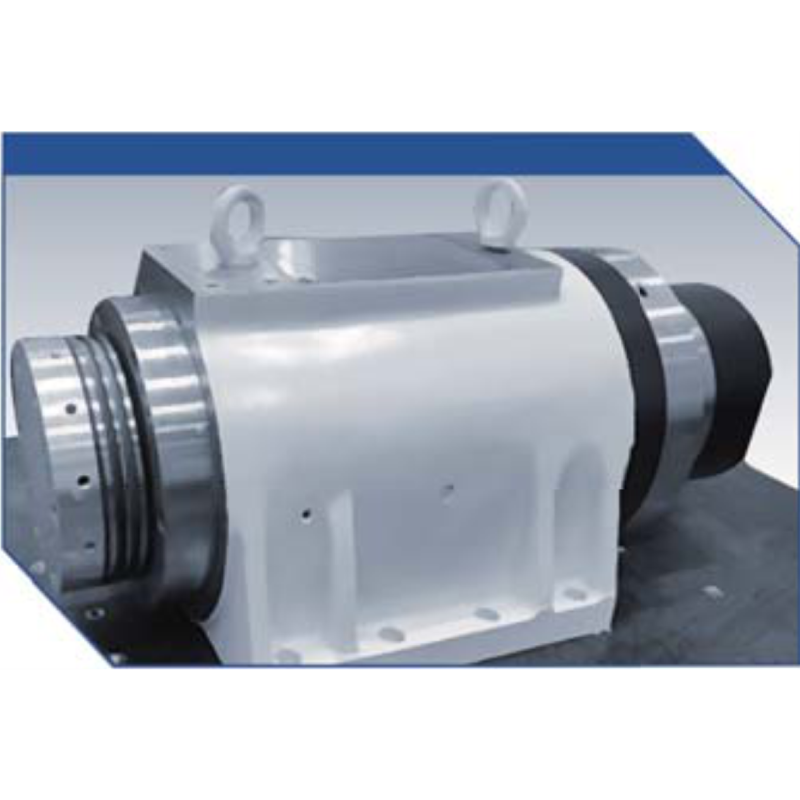

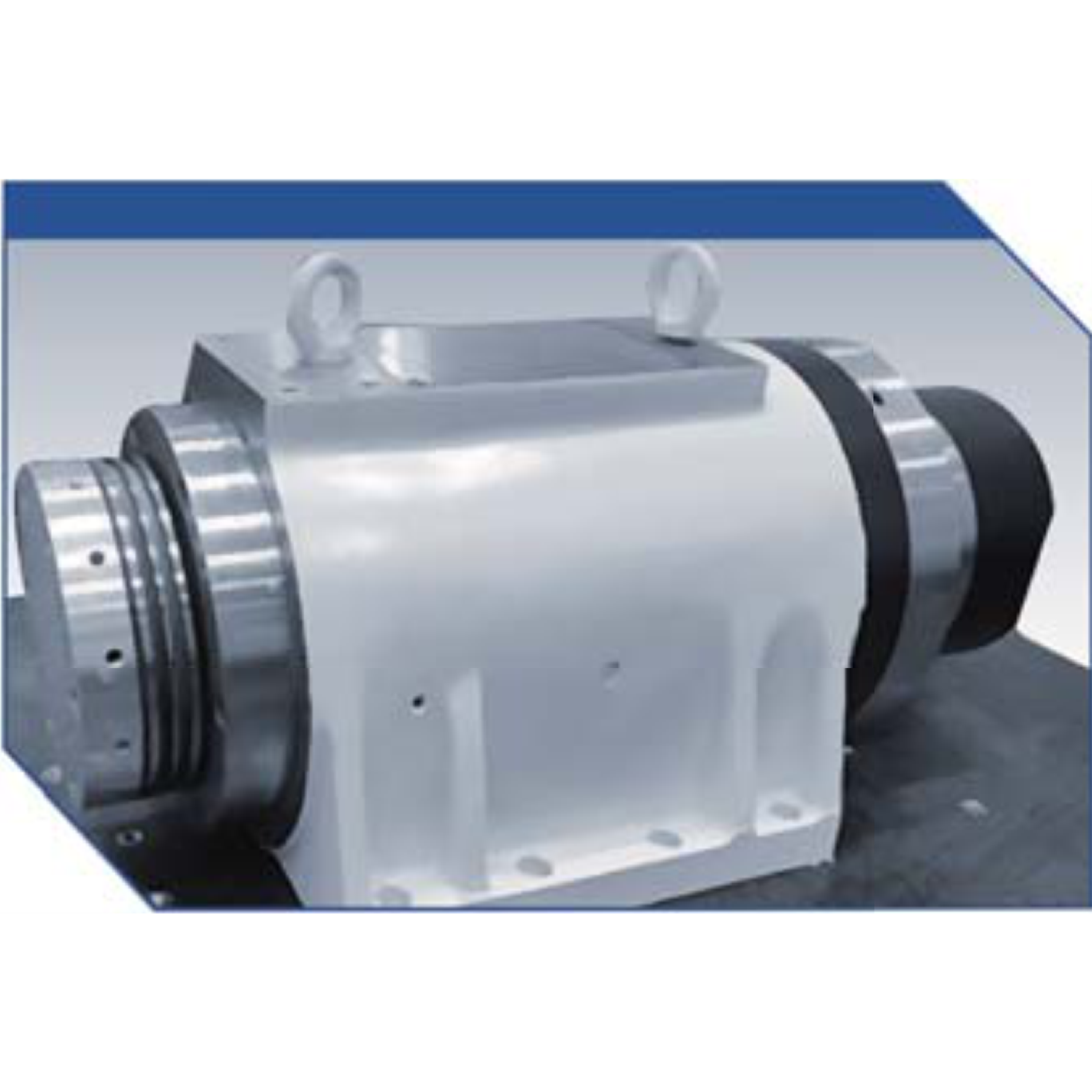

• Ultra-Precision Spindle System
  Offers spindle rotation accuracy of just 40 nm (axial/radial), providing smooth and symmetrical cutting results, ideal for micro-finishing applications.

• Fast Axis Speed and Response
  With X/Z-axis maximum speeds reaching 2 m/min, the machine ensures high production efficiency and reduced cycle times.

• High-Resolution Feedback
  X/Z-axis feedback resolution of up to 0.032 nm enables ultra-smooth motion control and precise responsiveness at every machining step.

• Stable Structure and Movement
  Guideway straightness accuracy of only 0.3 µm (full stroke) and repeatability of 0.15 µm ensure long-term stability, even under intensive operation.
