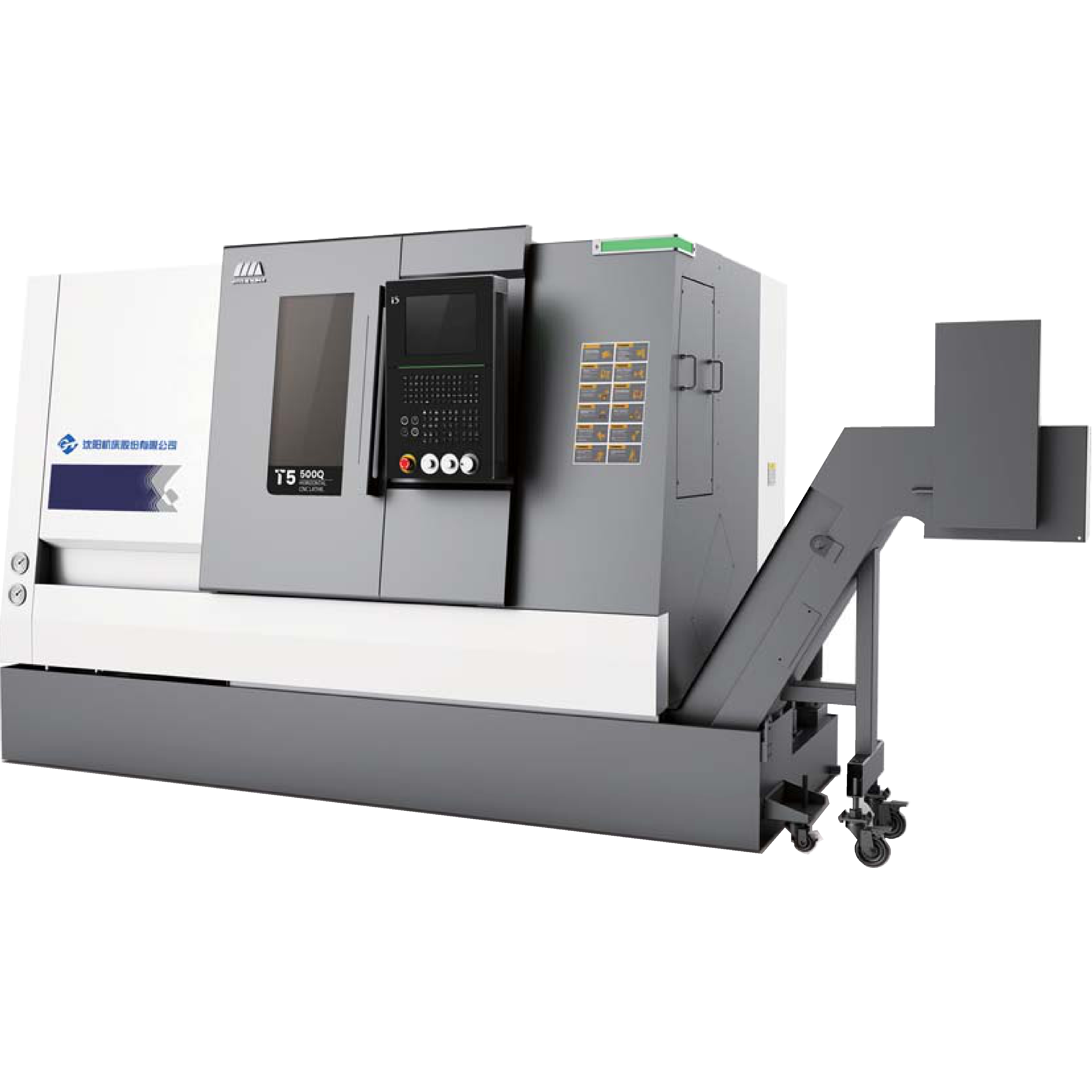

SMTCL T52-5000 – Precision and Durability for Large-Scale Machining

The SMTCL T52-5000 is a large-capacity CNC Turning Center designed to handle long and large-diameter metal workpieces with exceptional precision.

With a machining length of up to 5,000 mm and the Fanuc 0i-TF Plus control system, this machine delivers the stability, efficiency, and accuracy required for heavy-duty industrial applications such as automotive, energy, oil & gas, and general machining.

A rigid bed structure, high-torque spindle system, and horizontal servo turret ensure optimal performance during long-term operations while maintaining superior cutting quality.

Key Features:

• Large Machining Capacity
  Supports turning diameters up to Ø520 mm and workpiece lengths up to 5,000 mm, ideal for large cylindrical components such as shafts, rotors, and industrial pipes.

• High-Power Spindle System
  Driven by a 15/18.5 kW motor with a maximum torque of 246 Nm, delivering powerful cutting performance for hard materials and heavy-duty operations.
• High Accuracy and Maximum Stability
  Equipped with the Fanuc 0i-TF Plus CNC system for precise axis control and smooth motion, with rapid traverse speeds up to 30 m/min (X-axis) and 25 m/min (Z-axis).

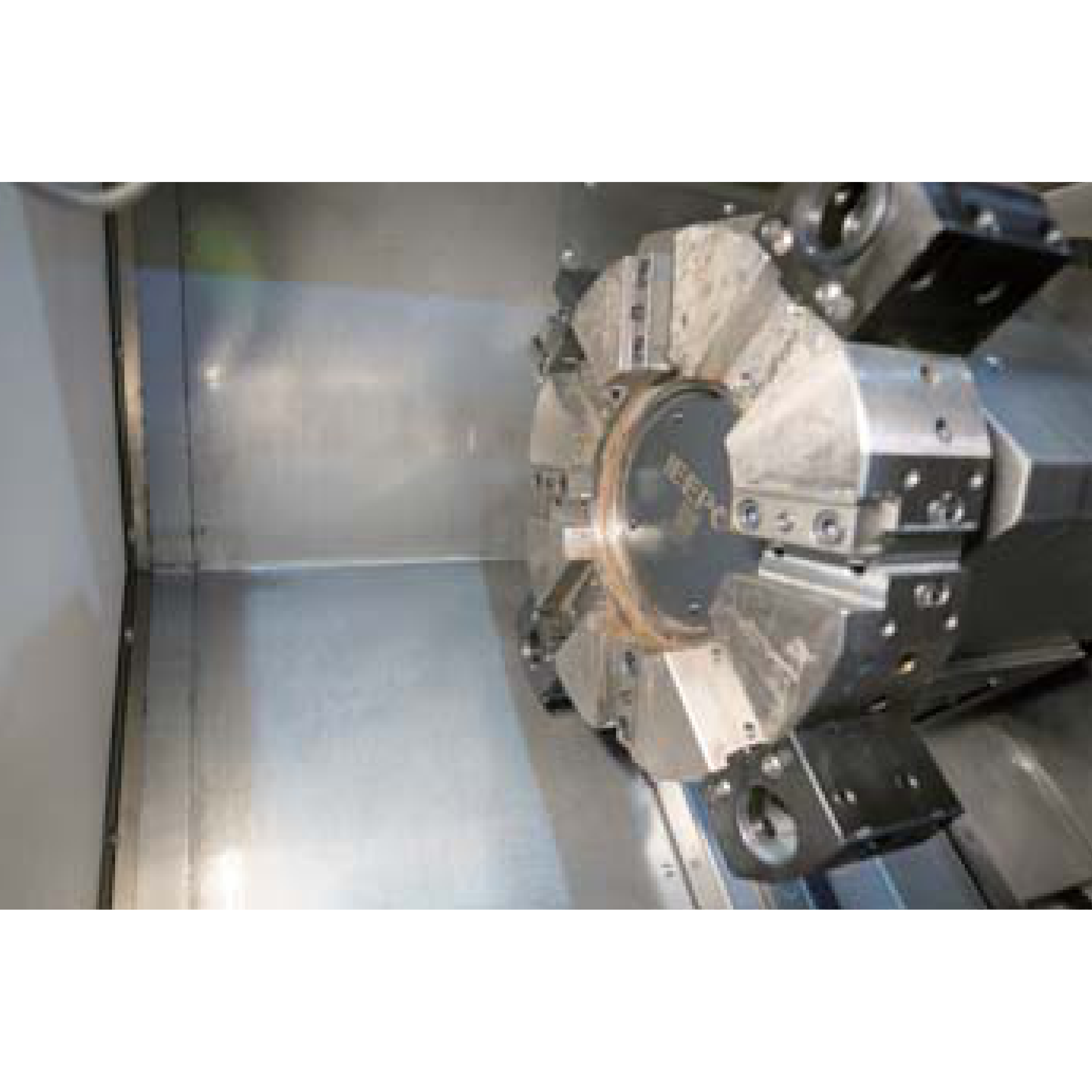

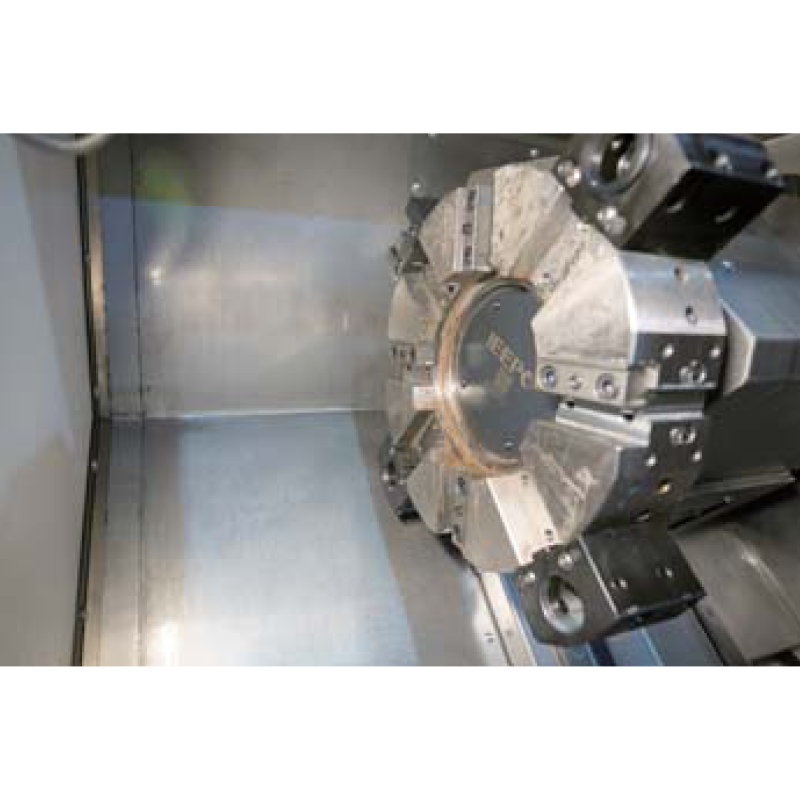

• 8-Station Servo Turret
  Features a horizontal 8-position servo turret with a fast indexing time of 2.5 seconds, enhancing tool change efficiency and overall productivity.
• Ergonomic and Durable Design
  A robust machine structure combined with a high-capacity cooling system ensures temperature stability during continuous operation—extending both tool and machine lifespan.
