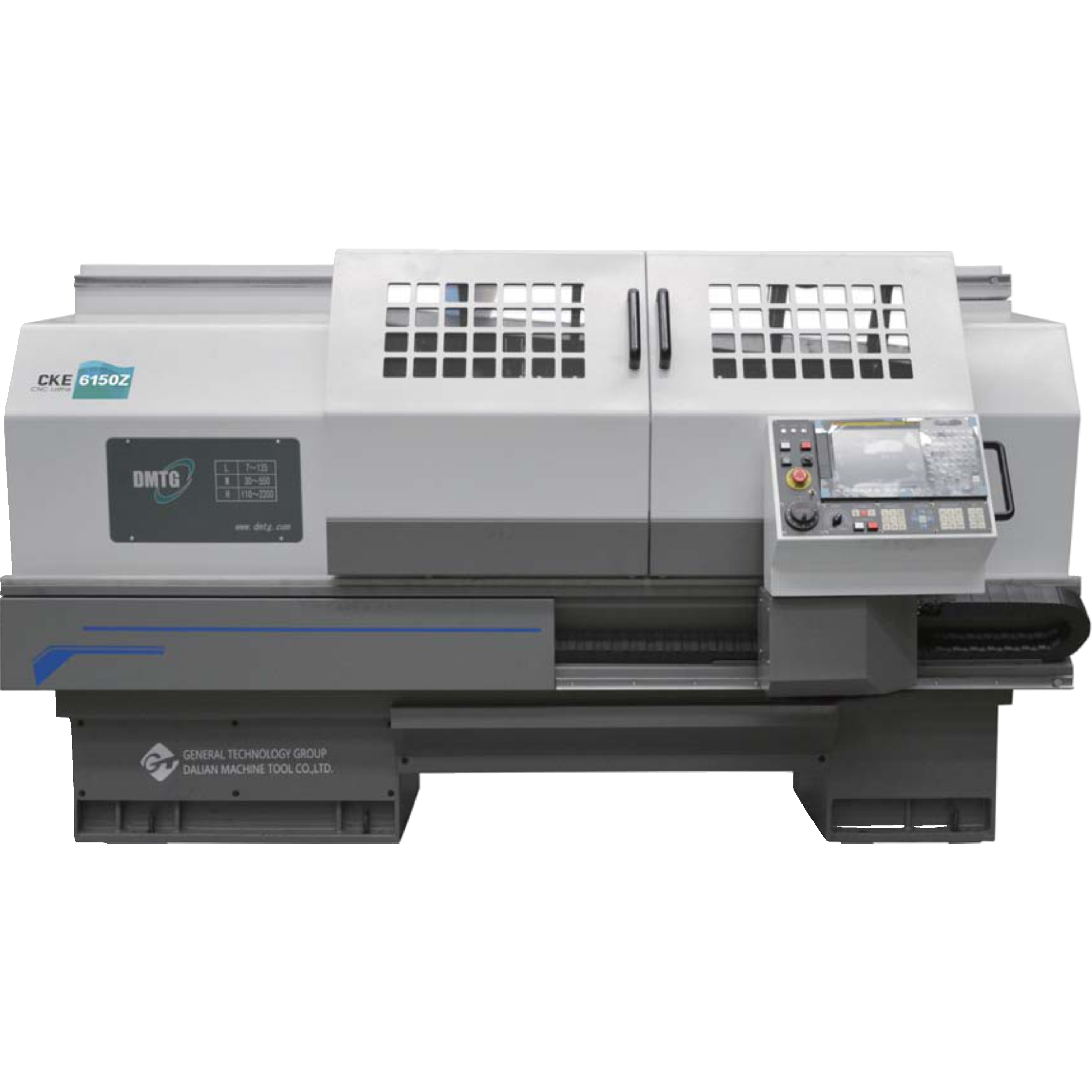

The DMTG CKE Series is a line of CNC lathes with a flat bed design, engineered to deliver high precision, exceptional durability, and user-friendly operation for a wide range of modern manufacturing needs.
With several model options — CKE6150Z, CKE6150i, CKE6163Z, and CKE6180Z — this series is designed to support both small- and large-scale production efficiently and reliably.
Key Features:
-
Robust and stable construction with a wide bed for enhanced accuracy and vibration resistance
-
High-quality spindle system (Gear Box / Servo Motor / Belt Driven) ensuring optimal cutting performance
-
High motion precision with positioning and repeatability accuracy up to ±0.01 mm
-
Generous X/Z axis travel to accommodate a wide range of machining operations
-
Flexible configuration options to suit various production requirements
| Model | CKE6150Z | CKE6150i | CKE6163Z | CKE6180Z |
|---|---|---|---|---|
| Max. Swing Diameter Over Bed | Ø500 mm | Ø500 mm | Ø630 mm | Ø800 mm |
| Max. Swing Diameter Over Cross Slide | Ø280 mm | Ø280 mm | Ø400 mm | Ø620 mm |
| Max. Workpiece Length | 750 / 1000 / 1500 / 2000 / 3000 mm | 750 / 1000 / 1500 / 2000 / 3000 mm | 750 / 1000 / 1500 / 2000 / 3000 mm | 1500 / 2000 / 3000 mm |
| Spindle Bore | Ø52 mm | Ø52 mm | Ø82 mm | Ø105 mm |
| Spindle Speed | 40–1600 rpm (Gear) | 60–2000 rpm (Servo) | 40–1600 rpm | 30–1250 rpm |
| Main Motor Power | 7.5 kW | 7.5 kW | 11 kW | 11/15 kW |
| X/Z Axis Travel | 250 / 750 mm | 250 / 750 mm | 350 / 1000 mm | 420 / 1500 mm |
| Positioning Accuracy | 0.015 / 0.02 mm | 0.015 / 0.02 mm | 0.015 / 0.02 mm | 0.015 / 0.02 mm |
| Repeatability Accuracy | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm |
| Machine Weight (approx.) | 2300–3800 kg | 2300–3800 kg | 3200–4800 kg | 4500–6500 kg |
